Rock-Mite

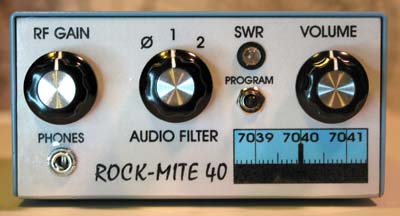

Here's my first attempt at building a complete transceiver. It is the 40-meter version of a 'Rock-Mite' CW transceiver from Small Wonder Labs.

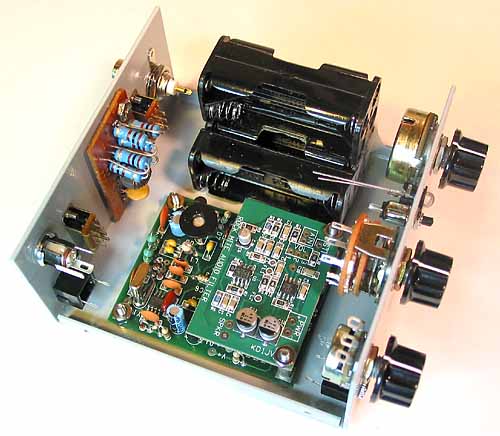

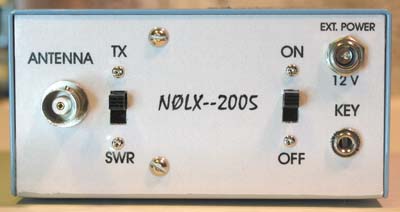

As you can see from the inside photo, it is almost done. There are three circuit boards. The large green one is the radio board. Above it is an audio filter surface-mount board. The brown board at the back is a SWR indicator that will connect to the LED in the front panel.

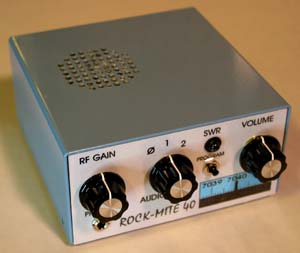

There are holders for ten 'AAA' rechargeable batteries, and a speaker will be mounted in the top of the case.






























...
